Stainless steel filter wire mesh is also known as filter wire cloth ,micron wire cloth,wire cloth filter screens, micron filtration cloth, micronic mesh, wire filter mesh, micron mesh, filter wire mesh, filtering mesh, filter screen, micron filtering mesh, filtration screen.
Material
SUS201,SUS304,304L,SUS316,SUS316L,310,310S,SUS302, etc.
Classification

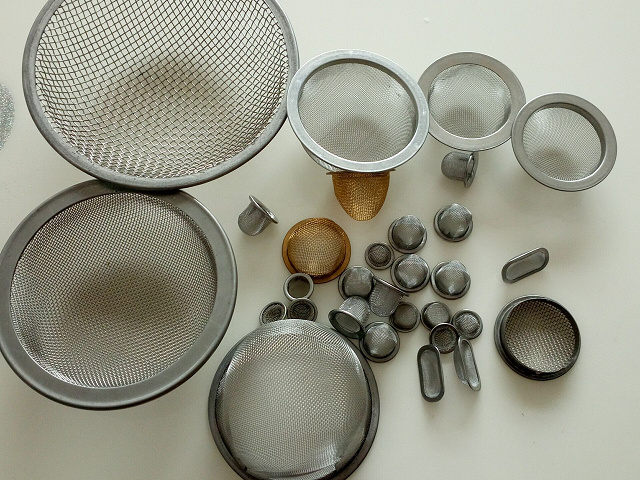

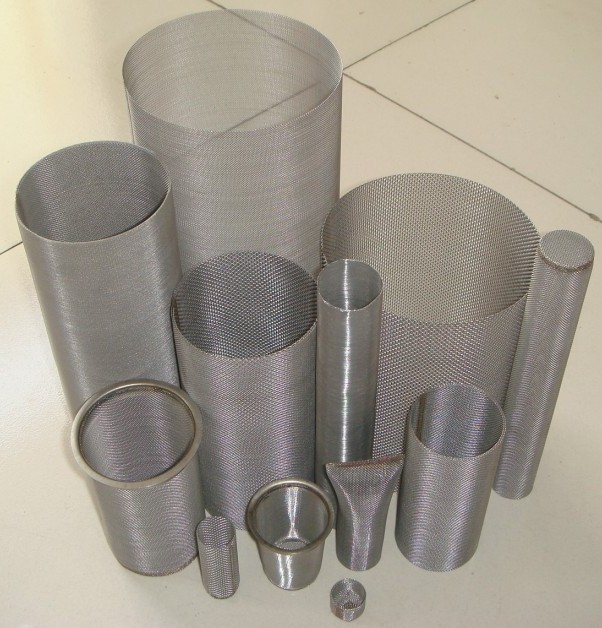

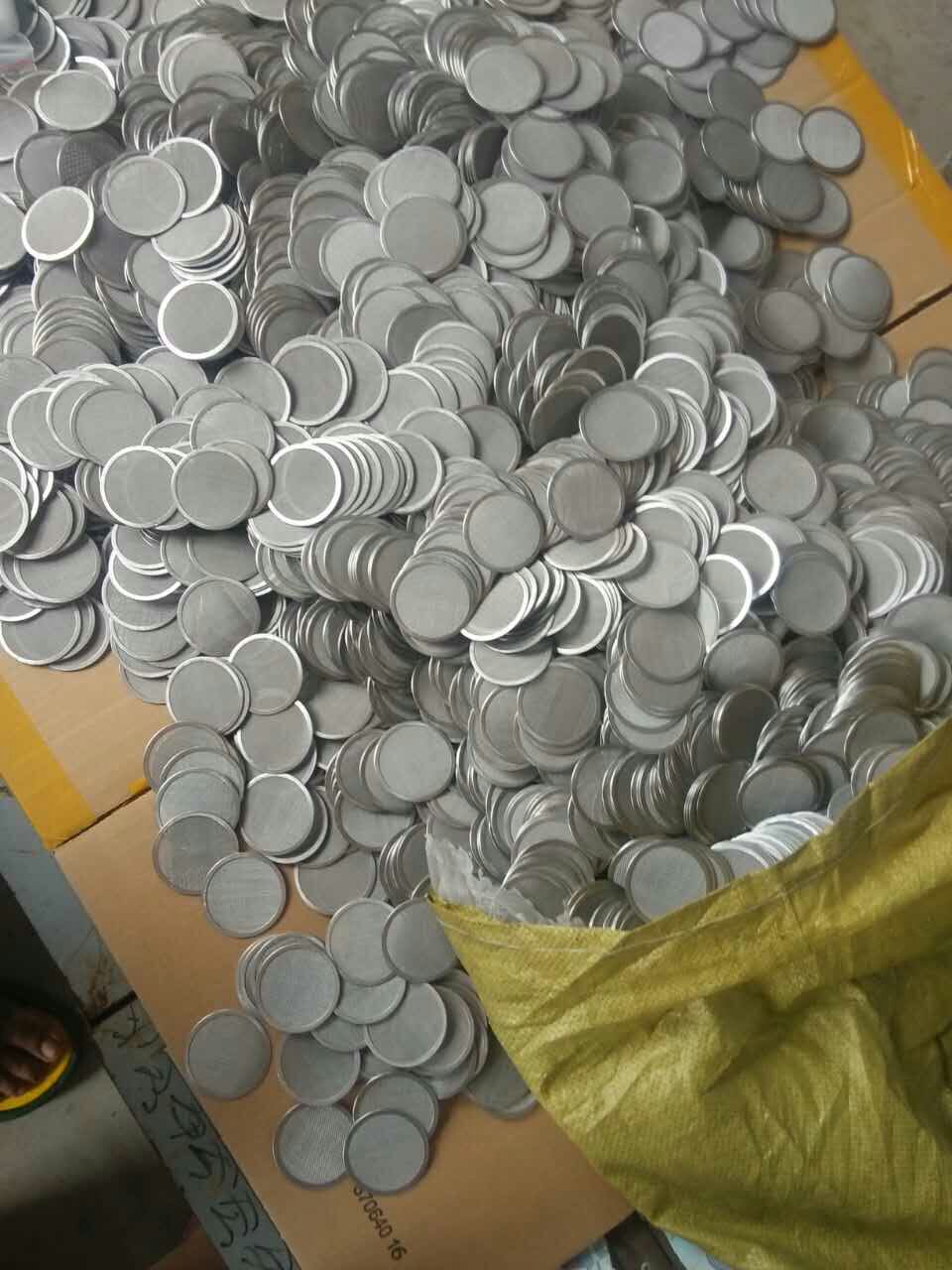

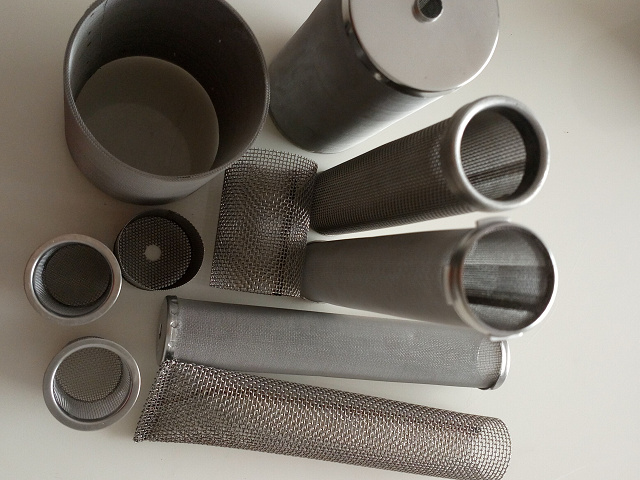

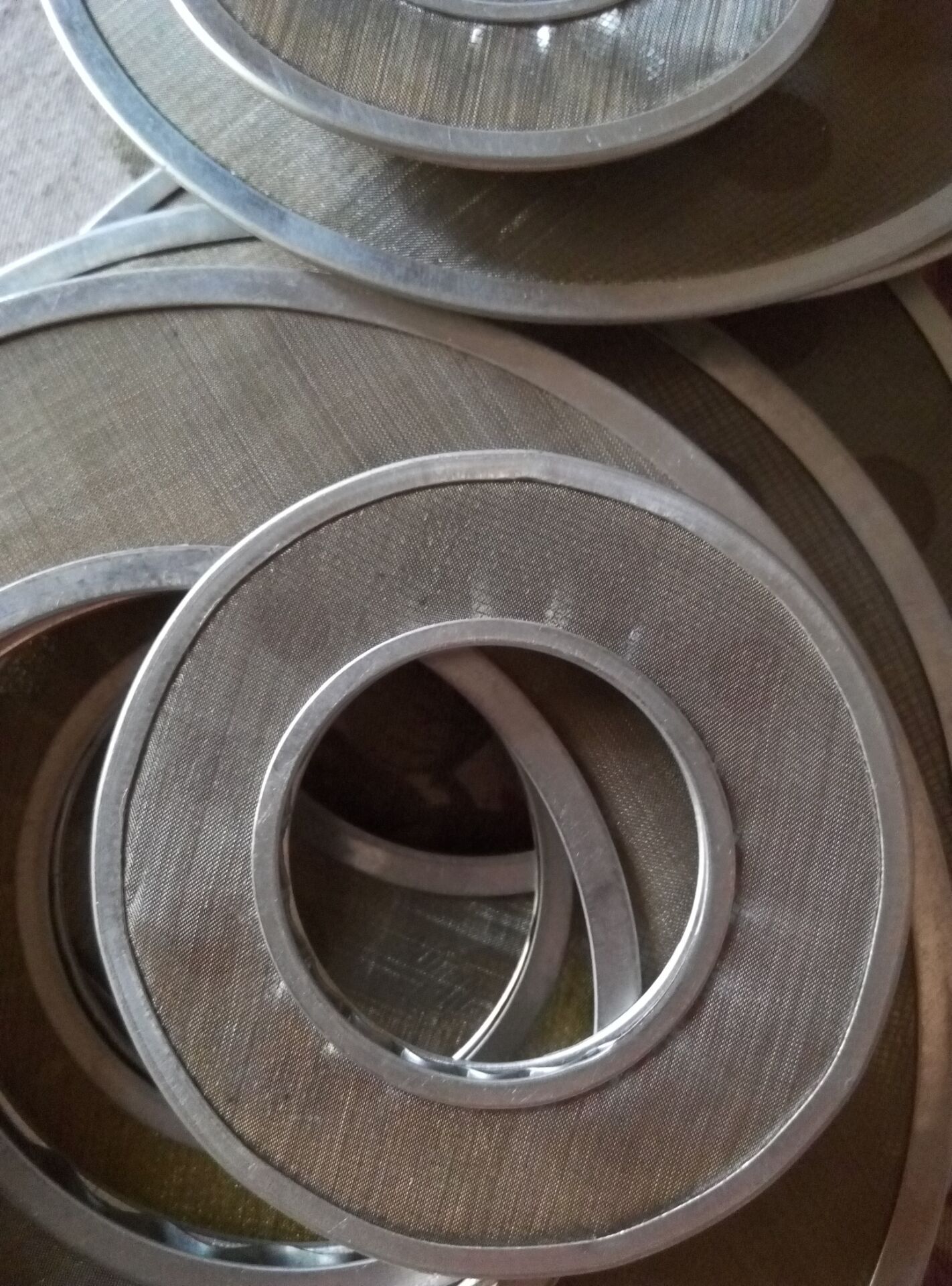

Stainless steel filter circle /filter disc, Stainless steel filter cap, Stainless steel filter cartridge , Stainless steel filter basket
Packing
Packaging:In roll,waterproof paper inside and woven bag outside.or according to customer demand based on different size and type product .
Specification
Standard Filter Disc |
MESH | WIRE DIA. ( MM ) | APERTURE SIZE ( MM ) | OPEN AREA |
10 X 10 | 0.711 | 1.829 | 51.8 |
14 X 14 | 0.457 | 1.357 | 55.9 |
16 X 16 | 0.457 | 1.131 | 50.7 |
20 X 20 | 0.559 | 0.711 | 31.4 |
20 X 20 | 0.457 | 0.813 | 41.0 |
24 X 24 | 0.376 | 0.682 | 41.4 |
30 X 30 | 0.376 | 0.531 | 34.2 |
30 X 30 | 0.310 | 0.536 | 40.0 |
40 X 40 | 0.274 | 0.361 | 32.3 |
50 X 50 | 0.193 | 0.335 | 43.6 |
60 X 60 | 0.193 | 0.230 | 29.8 |
80 X 80 | 0.122 | 0.196 | 37.9 |
100 X 100 | 0.102 | 0.152 | 36.0 |
120 X 120 | 0.091 | 0.120 | 31.8 |
150 X 150 | 0.071 | 0.088 | 29.6 |
200 X 200 | 0.050 | 0.077 | 36.76 |
250 X 250 | 0.040 | 0.062 | 36.76 |
300 X 300 | 0.040 | 0.045 | 27.83 |
325 X 325 | 0.035 | 0.043 | 30.49 |
400 X 400 | 0.028 | 0.036 | 31.25 |
500 X 500 | 0.025 | 0.026 | 25.79 |
Features
1 With fine, high filtration efficiency
2 Suitable for a variety of living environment, acid resistance, alkali resistance, high temperature resistant, wear-resistant, fireproof, waterproof, anti-static
3 Health and environmental protection lead-free, will not cause pollution to the environment
4.Stainless steel wire rod with 304 304L 316 316L
5 Special hand design, edge, safety, no burr.
6 After several processes stamping, annealing, thickening, resistance to pressure testing, durable
Application object
(water, particles, dust, air, gas oil, impurities)
fan, fuel tank, coffee machine, filter kettle, medical, air purifier, filters, auto engine system, water purifier, centrifuge, water pump, water tank, compressor, vacuum cleaners, washing machine, SMT machine, straight drink machine, taps, lampblack machine, air conditioners and other
