Hexagonal Wire Mesh

Inquire Now

Next

PRODUCT DESCRIPTION


Hexagonal wire netting is a metal wire netting, which use of metal wire weave,

The use of metal wire diameter is based on the size of the hexagonal.

If it is Galvanized hexagonal wire netting, steel wire diameter we use 0.3mm-2.0mm.

It is PVC-coating hexagonal wire netting, the outside diameter of pvc wire we use 0.8mm-2.6mm. then weaved to various specification hexagonal mesh.

Frame edge of the line can be made into unilateral, bilateral, can be moved side wire. roads.


Assortments

Electro gal. hexagonal wire netting、Hot dipped gal. hexagonal wire netting、hex. wire netting in Straight twist, Galvanized hex. wire netting in reverse twist.


Material

low carbon steel wire, stainless steel wire etc.

Weaving Patterns: Straight twist, reverse twist, double twist. Process: Galvanized after weaving or galvanized before weaving. Finish: Electric galvanizing, hot-dip zinc plating, stainless steel or PVC coated.


Characteristics

(1)Straight twist, reverse twist, double twist.

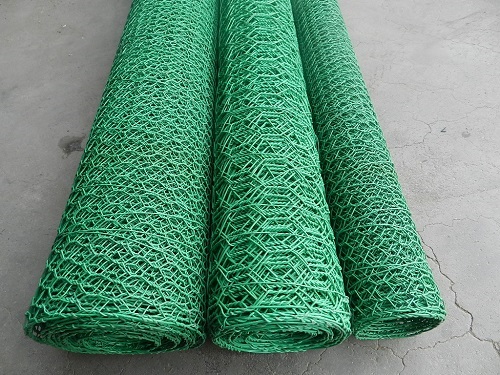

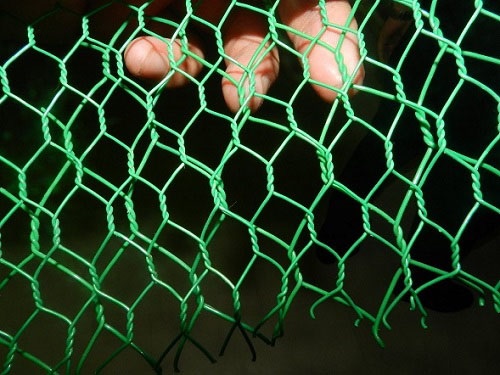

(2)PVC coated hexagonal wire mesh is coated PVC with galvanized wire surface then weaved to various specification hexagonal mesh. The protect of PVC can increase the mesh's life, UV Resistance, aging resistance and weather resistance .Different color choices, it can be integrated with the surrounding natural environment

(3)Galvanized hexagonal wire netting use of low carbon steel wire weave,the steel wire of tensile strength of not less than 20kg/m2,steel wire diameter can reach 0.3mm-2.0mm,

the surface treatment we can choose of electric galvanizing and hot-dip zinc plating to protect, the thickness of galvanized protect we can make it as clients requires.

The Zinc-coating we can make to 300g/ m²


Usage

(1) Fixed the construction wall surface, heat preservation, heat insulation

(2) The power plant grips the pipeline, to maintain warmth the boiler, heat preservation

(3) Frost proof, housing protection, botanical garden afforestation protection

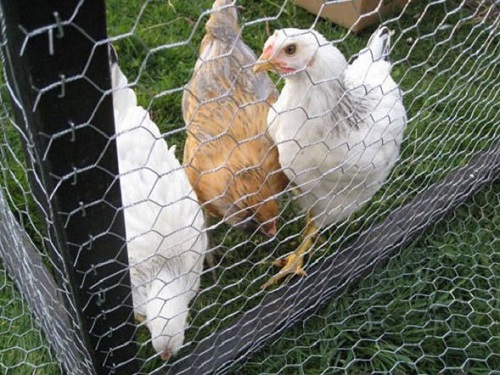

(4) Raises chicken and the duck, isolates chicken and duck shed, Protects Poultry.

(5) To protect the seawall, hillsides, road ,bridge projects and so on.



Specification

Specification

Wire Gauge(BWG)

Note

1.5CM1/2"

22

width limit:2M,single or double edge

24

2CM3/4"

20

width limit:2M,single or double or strong    edge

22

24

1.8CM5/8"

21

width limit:4',single or double edge

23

25

2.5CM1"

19

width limit:2M,straight or reversed twist

21

23

3CM1.25"

19

width limit:2M,straight or reversed twist

21

4CM1.5"

18

width limit:2M

20

22

5CM2"

18

width limit:2M

20

22

Weaving pattern

straight twist, reverse twist, and    double-direction twist
