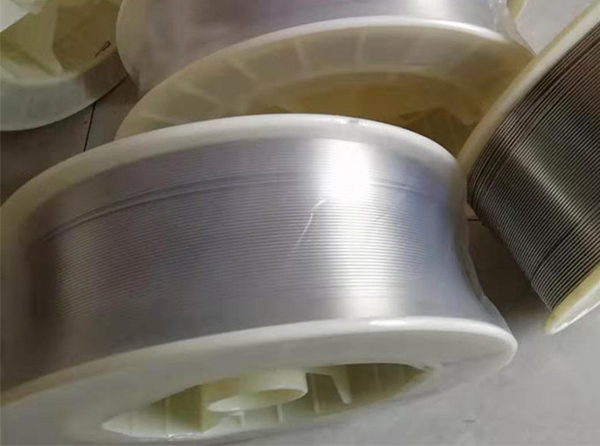

Nickel Aluminium 95/5 thermal spray wire for Arc spraying

Inquire Now

Next

PRODUCT DESCRIPTION

Nickel Aluminium 95/5 thermal spray wire for Arc spraying is mainly applied to arc spraying equipment for metal surface coatings. the composition is NI95% and the rest is Al.


Specification

Model NiAL 95/5.Grade NiAL 95/5, nickel content 95%.

Grades: Ni-Al wire Ni95Al5, Ni-Al wire Ni95/5

Specification: 1.6mm 2.0mm

Packing: 15KG/ Spool



Chemical composition

Model

 Ni%

Al%

Mn%

Fe%

Si%

Cu%

C%

Ti%

 Ni95AL5

 Rem

4.5-5.5

 ≤ 0.3

 ≤ 0.3

 ≤ 0.5

 ≤ 0.08

 ≤ 0.005

 ≤ 0.3%


Typical Characteristics

Item

proportion

strength

temperature resistance

Nickel-aluminium alloy wire

7.8

50-58Mpa

700-800℃



Aplication

Pre-alloyed nickel-aluminum substrate material suitable for arc spraying process.The coating is compact and has the properties of high temperature oxidation resistance, heat shock resistance and abrasion resistance. The bonding strength is above 55MPa.The coating can also be used directly as a working layer.

NiAl 95/5 (TAFA 75B) is widely used in arc and flange flame spraying systems. It is used for heat-resistant and anti-scaling coatings of traditional low-alloy steel, and is used for bonding coatings to improve the adhesion of surface coatings. Mold coating in the glass industry.
